Designed to Deliver

The limit of detection for H2O in high-purity D2O is 1 wt%. In the low-purity regime, the limit of detection for residual D2O in H2O is 9 wt%.

Our measurements are highly repeatable across the full D₂O concentration range. For high-purity samples (>90 wt% D₂O), the typical precision is about ±0.4 wt% for a single measurement; in the mid-range (30–90 wt% D₂O), it is about ±1.1 wt%; and for low-purity samples (0–30 wt% D₂O), it is about ±3.1 wt%.

The method is designed for neat H₂O/D₂O mixtures across the full range from essentially pure H₂O (0 wt% D₂O) up to high-purity D₂O (>90 wt% D₂O). We specify performance over three ranges: 0–30 wt% D₂O, 30–90 wt% D₂O, and >90 wt% D₂O.

Our tests are robust to common impurities found in real-world heavy water streams. In internal testing with D₂O/H₂O mixtures containing up to 4000 ppm gadolinium and 5000 ppm boron, gadolinium had negligible impact on the reported D₂O concentration, while boron caused at most ~3% deviation. Additionally the LanthaLux remained more reliable than density-based measurements for all measured impurities.

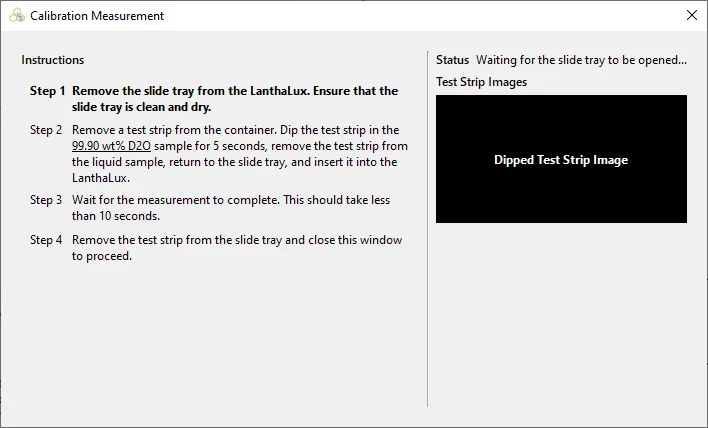

Each new batch of tests requires a short calibration before use, performed with our calibration kit, which contains 12 D₂O/H₂O standards spanning the relevant concentration range (including high-purity D₂O). After that initial setup, we recommend recalibrating the system at least once per month, or sooner if your internal QA/QC procedures indicate drift or if you change the concentration range you are measuring; we also recommend ordering the appropriate number of calibration kits with each new shipment of tests to support your planned testing volume and calibration schedule.

Yes. Because each analysis takes about 20 seconds and requires only 0.5 mL of sample, users can process many samples per hour in routine operation. Automated data capture and reporting further support high-throughput workflows.

The LanthaLux is designed so that users can obtain accurate results without specialized analytical training or a full laboratory setup. Most users are comfortable after a short orientation covering how to load the sample, run a one-click measurement, and review the automated results.

Each test requires approximately 0.5 mL of a D₂O/H₂O liquid sample.

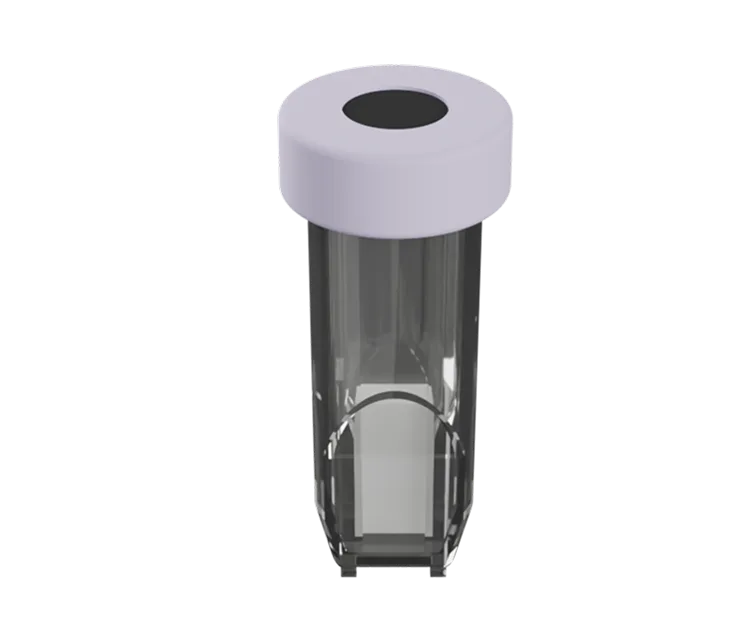

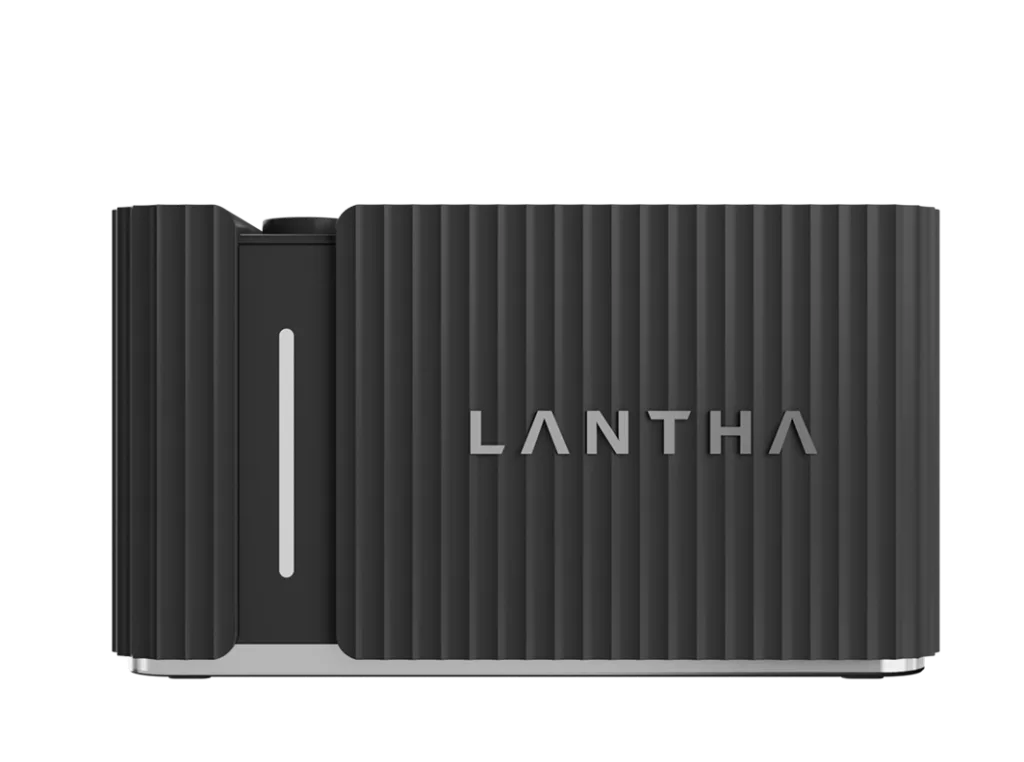

Using our platform is straightforward: you inject 0.5 mL of your D₂O/H₂O sample into the LanthaCell, insert the LanthaCell into the LanthaLux, and start a one-click measurement from the connected interface. The device excites the sensor optically and returns a D₂O concentration reading in under 20 seconds, with results automatically logged.

Yes. LuxCtrl software updates are free for all existing customers. Updates include usability improvements, new features, and performance refinements. You’ll be notified when an update is available and can install it at your convenience.

Yes. Calibration standards are available to order whenever you need to re-verify performance. If a hardware issue arises within the 3-year warranty, we’ll ship a replacement unit to minimize downtime and coordinate an RMA for the original. Spare accessories and replacement parts are stocked and easy to request through our team.

Purchase of our platform includes onboarding and training, delivered on-site or virtually to fit your team. If questions come up, we can help with quick troubleshooting, method setup, and data interpretation. You can reach us via email or video call, and we’ll coordinate live help as needed.

The LanthaLux is built to run for years. There are no scheduled maintenance intervals required for normal operation.
